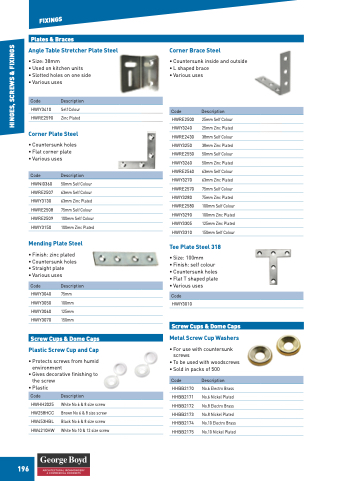

P. 196

                  Plates & Braces
Angle Table Stretcher Plate Steel
• Size: 38mm
• Used on kitchen units
• Slotted holes on one side • Various uses
Corner Plate Steel
• Countersunk holes • Flat corner plate
• Various uses
Corner Brace Steel
• Countersunk inside and outside • L shaped brace
• Various uses
    Code
 Description
   HWIY3410
Self Colour
 HWRE2590
  Zinc Plated
      Code
 Description
   HWRE2500
25mm Self Colour
 HWIY3240
 25mm Zinc Plated
   HWRE2430
 38mm Self Colour
   HWIY3250
  38mm Zinc Plated
     HWRE2550
50mm Self Colour
 HWIY3260
  50mm Zinc Plated
     HWRE2560
63mm Self Colour
 HWIY3270
 63mm Zinc Plated
   HWRE2570
  75mm Self Colour
     HWIY3280
75mm Zinc Plated
 HWRE2580
  100mm Self Colour
     HWIY3290
100mm Zinc Plated
 HWIY3305
  125mm Zinc Plated
     HWIY3310
 150mm Self Colour
       Code
 Description
   HWNI0360
50mm Self Colour
 HWRE2507
 63mm Self Colour
   HWIY3130
  63mm Zinc Plated
     HWRE2508
75mm Self Colour
 HWRE2509
  100mm Self Colour
     HWIY3150
 100mm Zinc Plated
   Mending Plate Steel
• Finish: zinc plated • Countersunk holes • Straight plate
• Various uses
Screw Cups & Dome Caps
Plastic Screw Cup and Cap
• Protects screws from humid environment
• Gives decorative finishing to the screw
• Plastic
Tee Plate Steel 318
• Size: 100mm
• Finish: self colour • Countersunk holes • Flat T shaped plate • Various uses
Screw Cups & Dome Caps
Metal Screw Cup Washers
• For use with countersunk screws
• To be used with woodscrews • Sold in packs of 500
   Code
 Description
   HWIY3040
75mm
 HWIY3050
 100mm
   HWIY3060
  125mm
     HWIY3070
 150mm
     Code
    HWIY3010
          Code
 Description
   HHBB2170
No.6 Electro Brass
 HHBB2171
 No.6 Nickel Plated
   HHBB2172
  No.8 Electro Brass
     HHBB2173
No.8 Nickel Plated
 HHBB2174
  No.10 Electro Brass
     HHBB2175
 No.10 Nickel Plated
     Code
 Description
   HWHH2025
White No 6 & 8 size screw
 HW258HCC
 Brown No 6 & 8 size screw
   HW453HBL
  Black No 6 & 8 size screw
     HW4210HW
 White No 10 & 12 size screw
       196
FIXINGS
HINGES, SCREWS & FIXINGS
