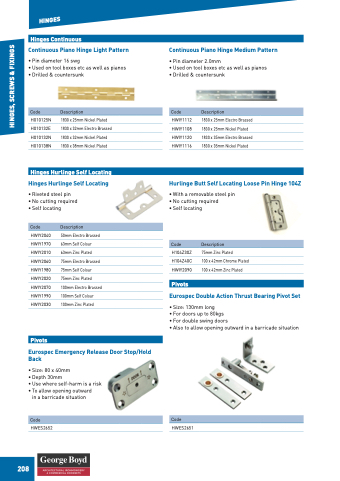

P. 208
Hinges Continuous
Continuous Piano Hinge Light Pattern
• Pin diameter 16 swg
• Used on tool boxes etc as well as pianos • Drilled & countersunk
Hinges Hurlinge Self Locating
Hinges Hurlinge Self Locating
• Riveted steel pin
• No cutting required • Self locating
Continuous Piano Hinge Medium Pattern
• Pin diameter 2.0mm
• Used on tool boxes etc as well as pianos • Drilled & countersunk
Code
Description
H010125N
1830 x 25mm Nickel Plated
H010132E
1830 x 32mm Electro Brassed
H010132N
1830 x 32mm Nickel Plated
H010138N
1830 x 38mm Nickel Plated
Code
Description
HWIY1112
1830 x 25mm Electro Brassed
HWIY1108
1830 x 25mm Nickel Plated
HWIY1120
1830 x 35mm Electro Brassed
HWIY1116
1830 x 35mm Nickel Plated
Hurlinge Butt Self Locating Loose Pin Hinge 104Z
• With a removable steel pin • No cutting required
• Self locating
Pivots
Eurospec Double Action Thrust Bearing Pivot Set
• Size: 130mm long
• For doors up to 80kgs
• For double swing doors
• Also to allow opening outward in a barricade situation
Code
Description
HWIY2040
50mm Electro Brassed
HWIY1970
63mm Self Colour
HWIY2010
63mm Zinc Plated
HWIY2060
75mm Electro Brassed
HWIY1980
75mm Self Colour
HWIY2020
75mm Zinc Plated
HWIY2070
100mm Electro Brassed
HWIY1990
100mm Self Colour
HWIY2030
100mm Zinc Plated
Code
Description
H104Z30Z
75mm Zinc Plated
H104Z40C
100 x 42mm Chrome Plated
HWIY2090
100 x 42mm Zinc Plated
Pivots
Eurospec Emergency Release Door Stop/Hold Back
• Size: 80 x 40mm
• Depth 30mm
• Use where self-harm is a risk
• To allow opening outward
in a barricade situation
Code
HWES2651
Code
HWES2652
208
HINGES
HINGES, SCREWS & FIXINGS
