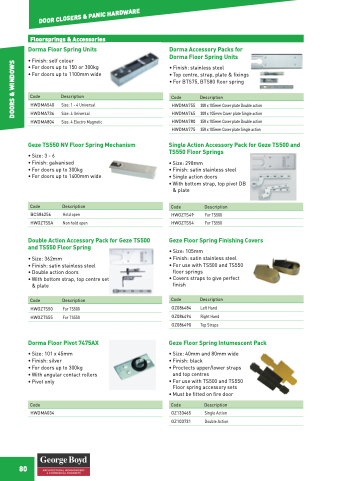

Page 80 - George Boyd Ironmongery

Floorsprings & Accessories
Dorma Floor Spring Units
• Finish: self colour
• For doors up to 150 or 300kg • For doors up to 1100mm wide
Geze TS550 NV Floor Spring Mechanism
• Size: 3 - 6
• Finish: galvanised
• For doors up to 300kg
• For doors up to 1400mm wide
Double Action Accessory Pack for Geze TS500 and TS550 Floor Spring
• Size: 362mm
• Finish: satin stainless steel
• Double action doors
• With bottom strap, top centre set
& plate
Dorma Floor Pivot 7475AX
• Size: 101 x 45mm
• Finish: silver
• For doors up to 300kg
• With angular contact rollers • Pivot only
Dorma Accessory Packs for Dorma Floor Spring Units
• Finish: stainless steel
• Top centre, strap, plate & fixings • For BTS75, BTS80 floor spring
Single Action Accessory Pack for Geze TS500 and TS550 Floor Springs
• Size: 298mm
• Finish: satin stainless steel
• Single action doors
• With bottom strap, top pivot DB
& plate
Geze Floor Spring Finishing Covers
• Size: 105mm
• Finish: satin stainless steel
• For use with TS500 and TS550
floor springs
• Covers straps to give perfect
finish
Geze Floor Spring Intumescent Pack
• Size: 40mm and 80mm wide • Finish: black
• Proctects upper/lower straps
and top centres
• For use with TS500 and TS550
Floor spring accessory sets • Must be fitted on fire door
Code
Description
HWDMA540
Size: 1 - 4 Universal
HWDMA736
Size: 4 Universal
HWDMA804
Size: 4 Electro Magnetic
Code
Description
HWDMA755
308 x 105mm Cover plate Double action
HWDMA765
308 x 105mm Cover plate Single action
HWDMA780
358 x 105mm Cover plate Double action
HWDMA775
358 x 105mm Cover plate Single action
Code
Description
BCS86256
Hold open
HWGZTS5A
Non hold open
Code
Description
HWGZTS49
For TS500
HWGZTS54
For TS550
Code
Description
GZ086484
Left Hand
GZ086494
Right Hand
GZ086490
Top Straps
Code
Description
HWGZTS50
For TS500
HWGZTS55
For TS550
Code
Description
GZ133465
Single Action
GZ103731
Double Action
Code
HWDMA034
